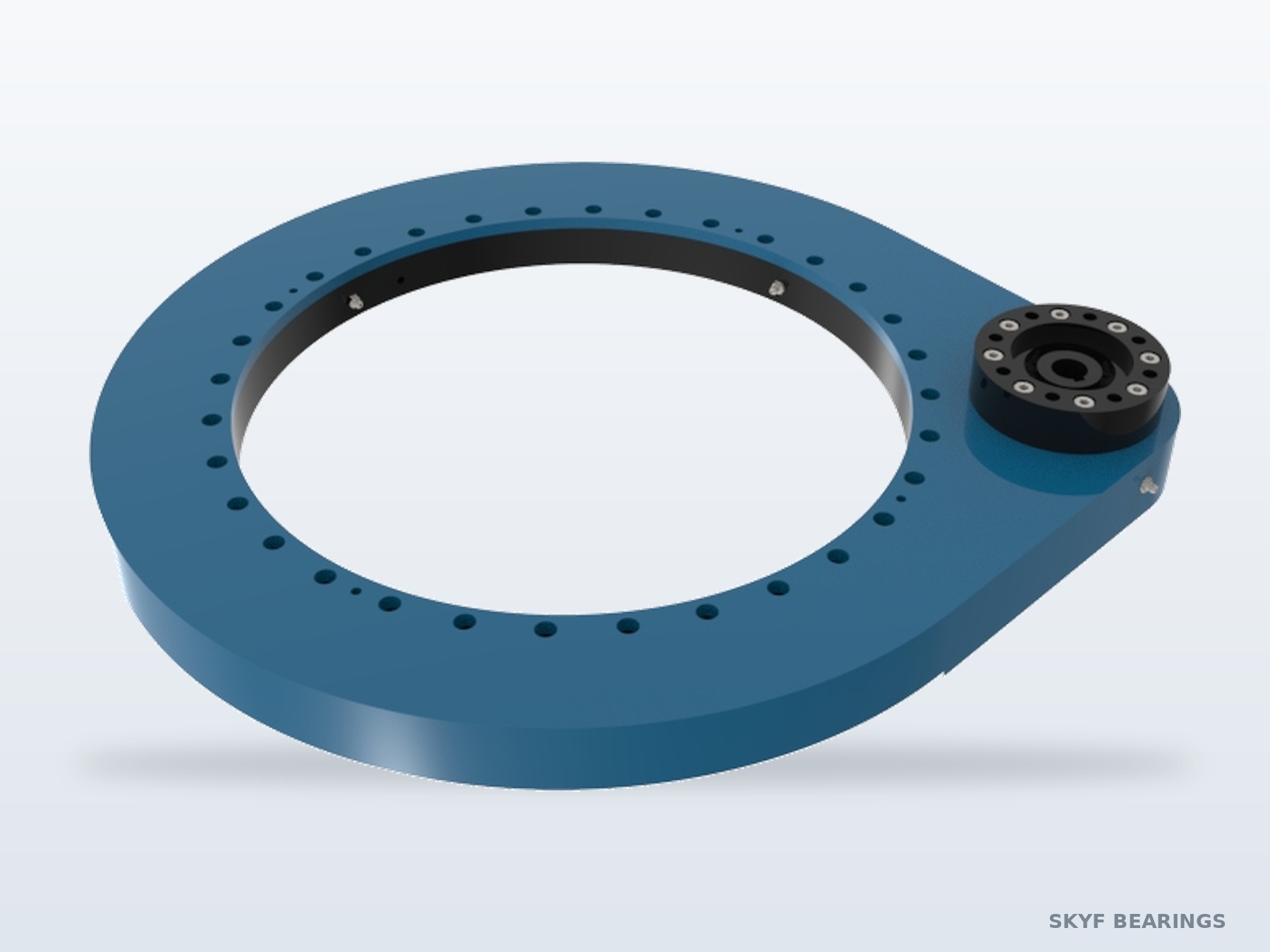

S compact slew drive
Small housing, single-axis motion, low cost. For turntables and light platforms where a full-size drive is simply too much.
Technical data
Specification range
| Parameter | Range | Remarks |
|---|---|---|
| Output torque | to 2.5 kNm | |
| Holding torque | 1.5× output | Self-locking |
| Ratio | 60:1 – 120:1 | |
| Weight | from 9 kg | Smallest size |
| Protection | IP65 | |
| Input | Custom flange |
Structure
What the structure gives you
The ring and the worm stage share a compact cast housing with a reduced wall section. Capacity is lower, but so are weight, envelope and price.
- Compact envelope and low weight
- Self-locking output
- Simple two-bolt mounting pattern
- Low starting torque for small motors
- IP65 as standard
Typical equipment
Display and equipment turntables, light robotics, small platforms and agricultural implements.
Options you can add
- Custom flange
- 12 V and 24 V DC motor options
- Potentiometer feedback
- Silent grease
Send a drawing for the S
Outside diameter, bore, mounting holes, gear module and the load case are enough for a quote. If you are replacing an existing ring, the old part number also works.
