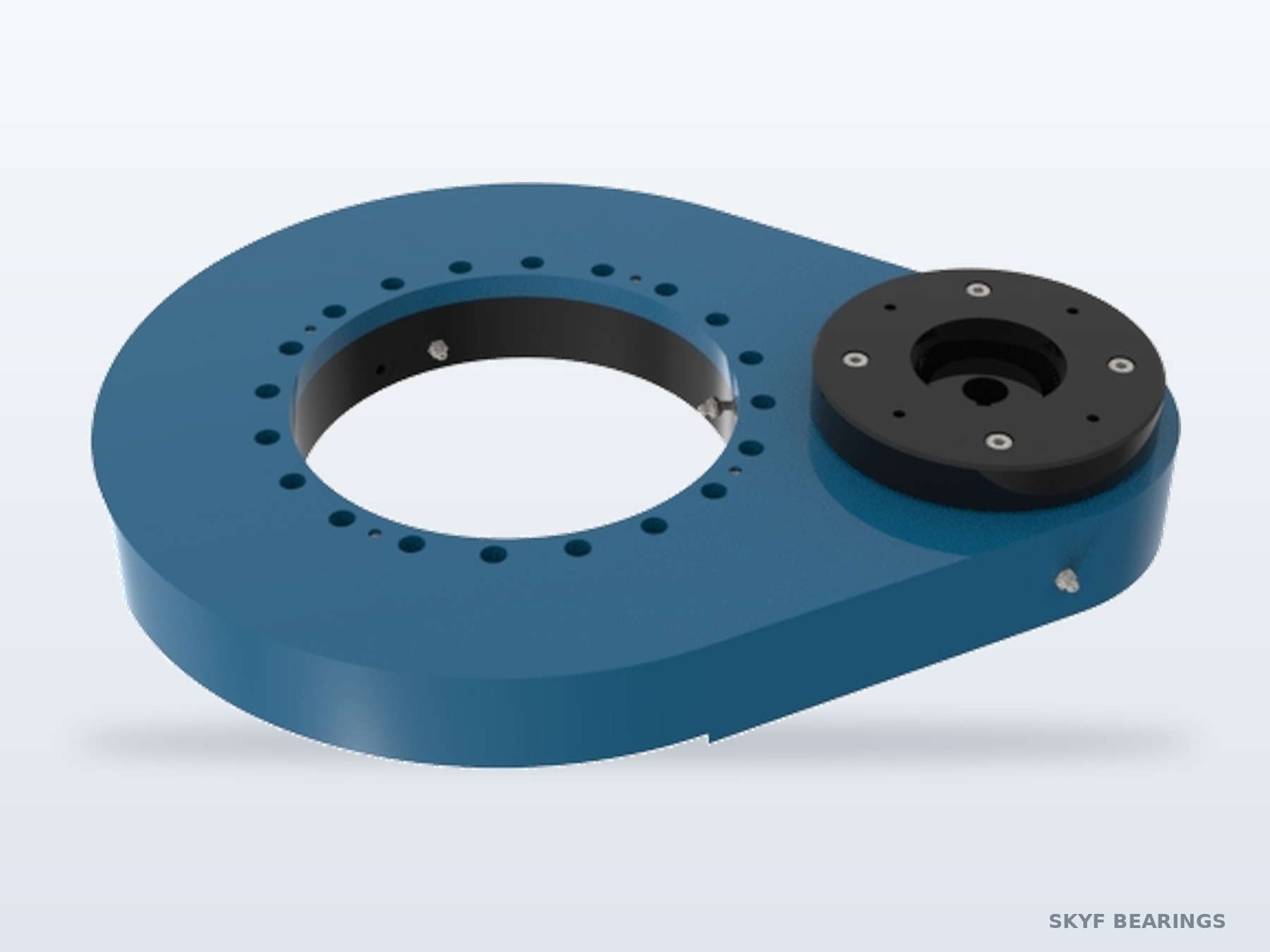

SDE low-backlash slew drive
The smallest envelope in the range, built for instrument-grade rotation: low backlash, low torque ripple, quiet running.
Technical data
Specification range
| Parameter | Range | Remarks |
|---|---|---|
| Output torque | to 1.2 kNm | |
| Backlash | to 0.01° | Lapped pair |
| Ratio | 80:1 – 200:1 | |
| Weight | from 5 kg | |
| Protection | IP54 / IP65 | Option |
| Input | Stepper or servo |
Structure
What the structure gives you
A reduced ring section, a lapped worm pair and a machined housing give a drive that moves smoothly in small increments. It is the option for instruments and small robots rather than for moving structures.
- Low backlash from a lapped worm pair
- Smooth motion at small increments
- Low noise for laboratory and medical use
- Light weight for moving gantries
- Stepper and servo input options
Typical equipment
Instruments, laboratory positioning, small robot joints, optical mounts and medical imaging gantries.
Options you can add
- Lapped worm pair
- IP65 sealing
- Custom mounting flange
- Vacuum-compatible grease
Send a drawing for the SDE
Outside diameter, bore, mounting holes, gear module and the load case are enough for a quote. If you are replacing an existing ring, the old part number also works.
