Series 011
Light series slewing bearing
Thin section, low weight, low starting torque. For machines where the ring has to disappear into the design.
Technical data
Specification range
| Parameter | Range | Remarks |
|---|---|---|
| Outside diameter | 100 – 1,500 mm | Larger on request |
| Section height | 20 – 60 mm | |
| Weight | from 0.6 kg | Smallest size |
| Structure | Four-point contact | |
| Starting torque | very low | Hand rotation possible |
| Sealing | Shielded or sealed | Application dependent |

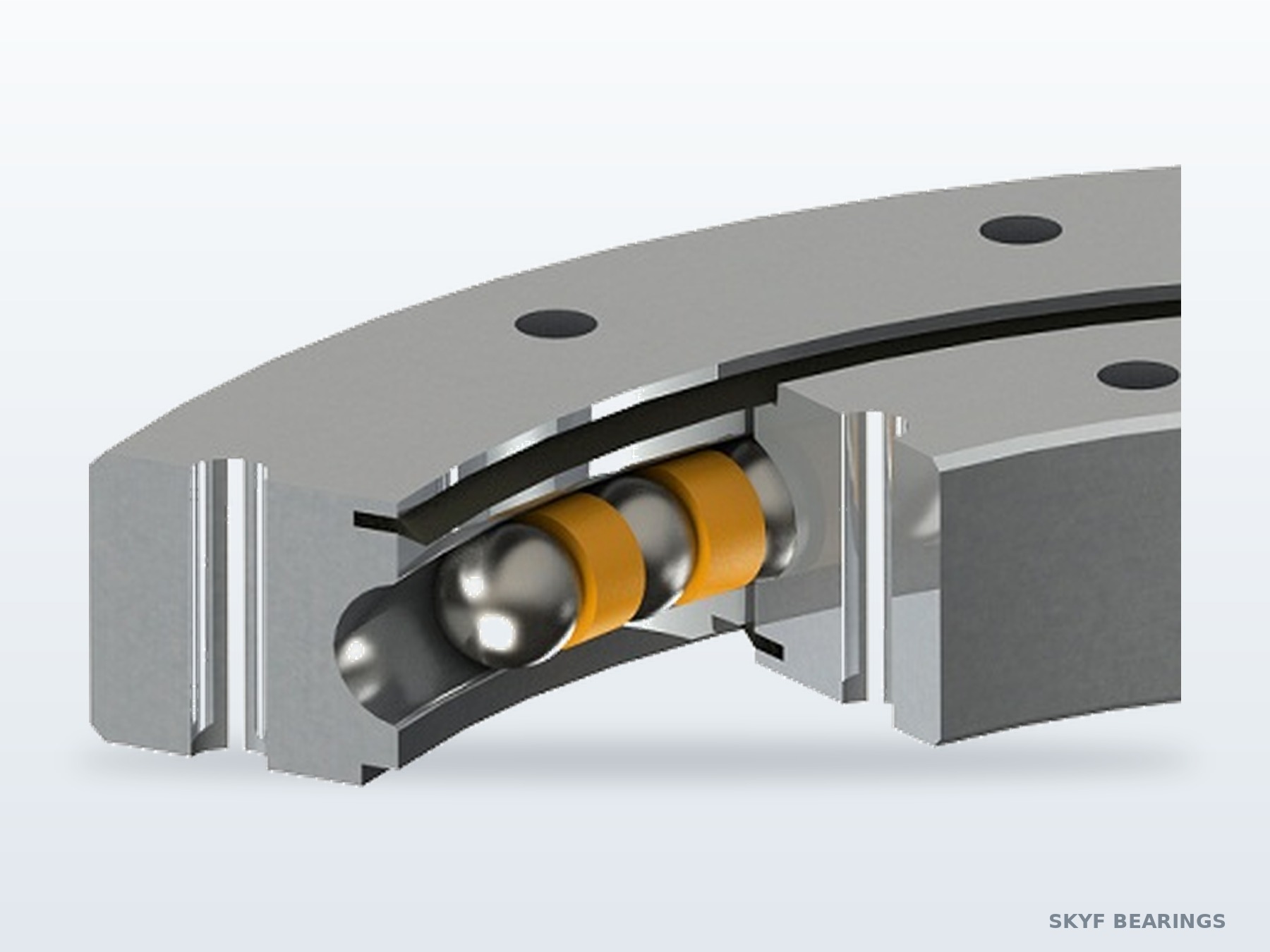

Structure
What the structure gives you
A reduced section and a lighter ball complement bring the weight down and make hand rotation easy. Capacity is lower, which is the right trade for displays, instruments and light turntables.
- Low weight and low starting torque
- Thin section fits inside a small envelope
- Available with or without gear teeth
- Hand rotation possible on small sizes
- Corrosion-resistant options for outdoor displays
Typical equipment
Display turntables, medical and laboratory instruments, camera and sensor mounts, light robotics and furniture mechanisms.
Options you can add
- Stainless rings for outdoor use
- Sealed or shielded versions
- Silent running grease
- Custom bore and hole pattern
Send a drawing for the Series 011
Outside diameter, bore, mounting holes, gear module and the load case are enough for a quote. If you are replacing an existing ring, the old part number also works.
