VE vertical slew drive

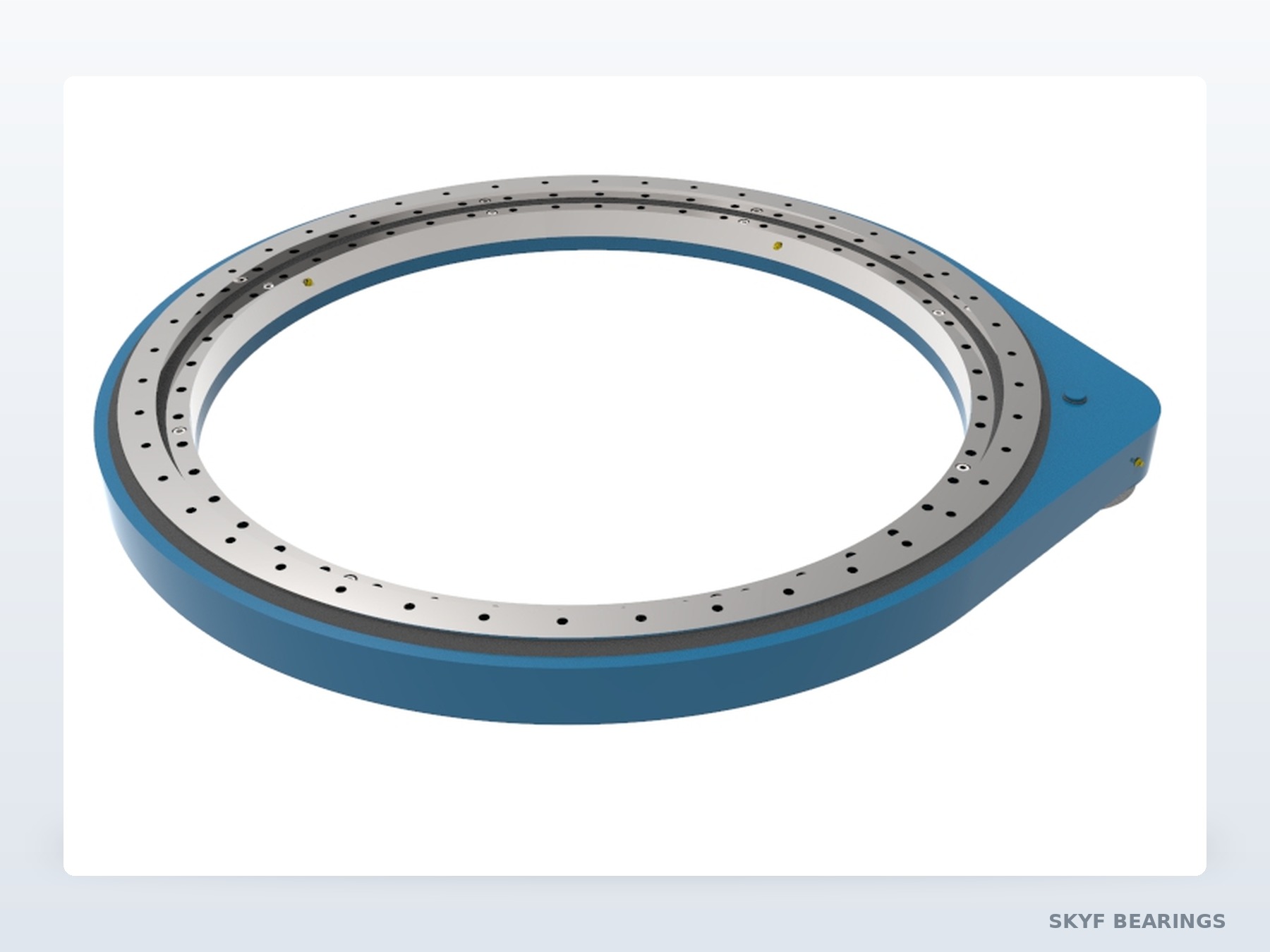

A vertical flange for elevation axes and lift columns, where the drive is bolted to a face rather than a top plate.
Technical data
Specification range
| Parameter | Range | Remarks |
|---|---|---|
| Output torque | to 8 kNm | Continuous |
| Holding torque | 1.5× output | Self-locking |
| Ratio | 40:1 – 150:1 | |
| Mounting | Vertical flange | Bolted to a face |
| Protection | IP65 | IP66 optional |
| Input | Motor flange to drawing |
Structure
What the structure gives you
Rotating the mounting face through 90 degrees lets the drive sit against a vertical structure. That is what elevation axes on trackers, lifts and platforms usually need, and it keeps the motor out of the working envelope.
- Flange rotated for elevation-axis mounting
- Motor stays outside the working envelope
- Self-locking worm holds the elevation angle
- Same sealing and grease system as the SE series
- Spacer plates available for stack alignment
Typical equipment
Dual-axis trackers, lift columns, elevation platforms, antenna elevation axes.
Options you can add
- IP66 sealing set
- Spacer plate
- Output encoder
- Hand crank for manual positioning
Send a drawing for the VE
Outside diameter, bore, mounting holes, gear module and the load case are enough for a quote. If you are replacing an existing ring, the old part number also works.
